CTS-230-64 Elite Grade Tactical Clip-On Thermal Weapon Sights

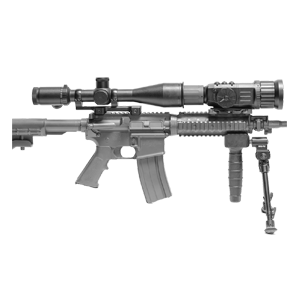

GSCI’s Elite Grade Clip-On Thermal Weapon Sights CTS-230-64 are designed for close to medium-range engagements. Utilizing the quick release weapon mount, the CTS-230-64 easily attaches to and detaches from standard 1913 Picatinny rails in front of daytime scopes. This gives the operator the ability to deploy it on multiple weapon platforms without the need to dedicate a thermal scope.
CTS-230-64 sights have built-in digital collimator which allows the easy pairing with the host day scope.
Features:
High-Resolution Uncooled FPA: 640×480
Fast Refresh Rate: 50Hz
Quality and “Fast” Germanium Lens
Built-In Video Recorder
Ultra-Low Power Consumption
Stow Safety Feature (SSF)
Precision-Machined Rugged Aluminum Body
Weapon-Mountable: Fits 1913 Rails
Video-out for External Display and Recording
Stadiametric Rangefinder
High-Res AMOLED Display 800×600
24-hour Operation
Remote Control Unit
Manual and Auto FPA Sensitivity Adjustment
Manual Display Brightness Adjustment
Black Hot / White Hot Polarity Control
External Power Supply Compatibility
Complete Dust– and Waterproof Protection
Available for Worldwide Export
7-Year Manufacturer’s Warranty
Made in Canada
| TECHNICAL SPECIFICATIONS | |
| Optical Magnification | 1X |
| Lens Focal Length and F-Number | 50mm, f/1.0 |
| Field of View | 12.4° x 9.3° |
| Focusing Range | 1m .. Infinity |
| FPA Resolution and Pitch | 640×480, 17µm |
| FPA Type | Uncooled, a-Si, Shutterless, Silent,
Auto-NUC (Uninterrupted Operation) |
| FPA Sensitivity | <50mK |
| FPA Refresh Rate | 50Hz |
| Digital Zoom | 2X and 4X |
| Display | AMOLED, Colour, 800×600 |
| Imaging Modes | 1 Monochrome + 8 Colour |
| Digital Video Recorder | Built-In (32 GB microSD Card Included) |
| Accepted Batteries | 4pcs AA, any kind: Lithium, Rechargeable, Alkaline, etc. |
| Battery Life | Up to 10 Hours |
| Max. Detection Human (1.7×0.5m) | 1,660 m |
| Max. Detection Vehicle (2.3×2.3m) | 2,250 m |
| Environmental Protection | IP67 or Better (Optional) |
| Dimensions, mm | 230x90x65 |
| Weight, grams | 1100 |
| Operating Temperature | -40°C .. +50°C |
| Warranty | 7 Years, Limited |
| Export | Available Worldwide * |
