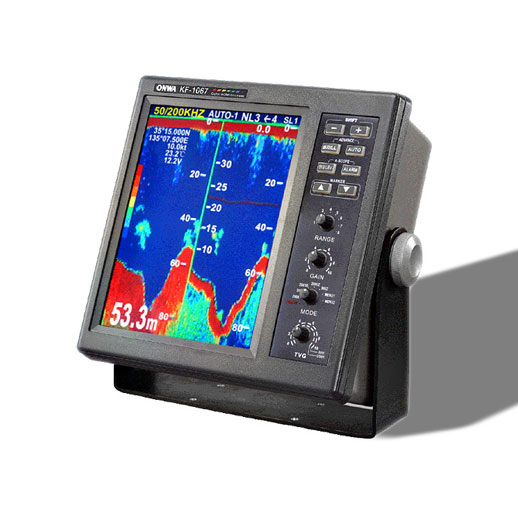

10.4″ TFT Color LCD Display
• Choice of frequency : 50KHz, 200KHz or 50 & 200KHz (Dual Frequency ), Specify when ordering
• Choice of Output Power : 1KW or 2KW, specify when ordering.
• 10.4″ TFT LCD display with 8-color or multi-level amber presentation
• Auto Mode for hands-off operartion
• Variety of display modes : A-scope, bottom-lock expansion, marker zoom and unique bottom zoom displays
• Compound temperature sensor option
| GENERAL | |
|---|---|
| 1. Display | 10.4″ color TFT LCD |
| 2. Echo Color | 8 colors (including background color) according to echo strength. Monochrome display is also available. The background color is selectable from blue, light blue, white and black. |
| 3. Basic Range | Meters : 5/10/20/40/80/150/300/600 Feet : 15/30/60/120/200/400/1000/2000 Fathoms : 3/5/10/20/40/80/150/300 Passi / Braza : 3/5/10/30/50/100/200/350 The basic ranges can be changed on the system menu. |
| 4. Range Shift | Up to 300 meters (1000 feet, 150 fathoms, 200 passi/braza ) |
| 5. Zoom Range | Times 2, 3, 4 and 5 ranges |
| 6. Bottom Lock Expansion Range | 5/10 meters, 10/20 feet, 2/5fathoms , 2/5 passi/braza |
| 7. Auto Mode | Automatic adjustment of range and gain |
| 8. Display Mode | 50KHz or 200KHz version :Normal, Zoom and A-scope 50KHz & 200KHz (Dual Freq) version : High Frequency (200KHz), Low Frequency (50KHz), Dual (200KHz and 50KHz 1/2 display on each), Zoom (200KHz and 50KHz zoom) and A-scope. |
| 9. Zoom Display | Marker Zoom, Bottom Zoom and Bottom-lock Expansion |
| 10. Display Advance Speed | Freeze, 1/8, 1/4, 1/2, 1/1, 2/1 |
| 11. TX Frequency Output power | 50KHz, 200kHz or 50& 200KHz (Dual Frequency ), specify when ordering |
| 12. Output power | 1KW or 2KW rms, specify when ordering |
| 13. Pulse-lenght/TX rate Display End Depth (m) 5 10 20 40 80 150 300 600 Pulse-Length (ms) 0.1 0.1 0.1 0.2 0.4 0.7 1.5 2.5 TX Rate 80ms 80ms 80ms 160ms 320ms 560ms 1001.2s 502.0s |
|
| 14. Interference Rejector | Rejects unwanted signals by comparing last and present echoes in strength |
| 15. Alarm | Fish and Bottom alarms, Temperature alarm ( sensor required ) |
| 16. Input / output data Input Output | NMEA0183 RMC, VTG SDDBT, SDDPT |
| 17. Transducer | 1KW TGM60-50B-12L (50KHz, with 12 meters cable ) TGM60-200B-12L (200KHz, with 12 meters cable ) 2KW TGM60-50A-15L (50KHz, with 15 meters cable ) TGM60-200A-15L (200KHz, with 15 meters cable ) |
| POWER SUPPLY | |
|---|---|
| 1. Display Unit | 12 – 24 VDC ( -10%, +30% ) : 1.5 – 3.0 A |
| ENVIRONMENTAL CONDITION | |
|---|---|
| 1. Ambient Temperature | 0 degrees Celsius to +50 degrees Celsius |
| 2. Relative Humidity | 85% at 40 degrees Celsius |
| 3. Water proofing | Display Unit : IPX4 |
| 4. Vibration | +/- 1mm +/-10%, 2(5) to 13.2Hz, Maximum acceleration 7m/s2 , 13.2 to 100Hz |
| COATING COLOR | |
|---|---|
| 1. Display Unit | Chassis : 2.5GY 5/1.5 Panel : N3.0 Newtone No.5 |
