KW-360 (NEW!)

Category: Accessories

Description

Features

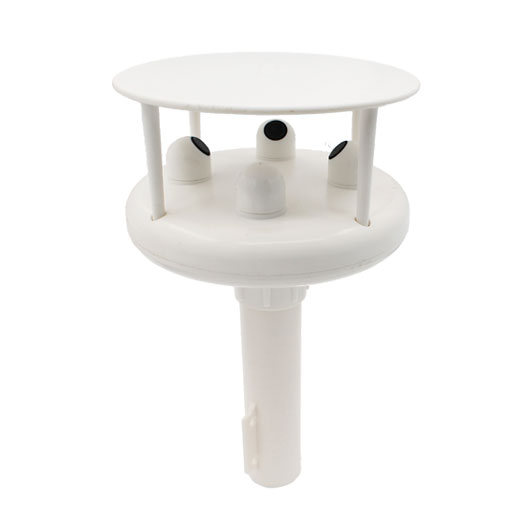

Ultrasonic Weather Station
KW-360 is a powerful light-weight product that Measures wind speed&direction, temperature, humidity, air pressure and altitude.

• No calibration needed
• Two electrical output, RS485 and RS232
• Configurable baud rate up to 38400 (4800, 9600, 19200 and 38400)
• Standard NMEA sentences output, $MWV and $XDR
• Can be used in PC with supplied PC software
• No moving parts, does not need constant maintenance
• Every channel output is isolated
• Wide operating voltage range from 10.5 V DC to 40.5 V DC

Specifications

WIND SPEED
Range	0~40m/s
Precision	±2% (at 12m/s)
Resolution	0.01 m/s
Measurement Unit	m/s

WIND
Range	0~359.9°
Resolution	0.1°

TEMPERATURE
Temperature Measurement Range	-20°C~+75°C
Temperature measurement Accuracy	±0.5°C (at 12m/s)
Temperature Resolution	0.1°C
Measurement Unit	°C

HUMIDITY
Humidity Measurement Range	10%~99.9%
Humidity measurement Accuracy	±2%RH (25°C)
Humidity Resolution	0.1%RH

PRESSURE
Measurement Unit	Pa
Measurement Range	30000~ 110000 Pa

ALTITUDE
Measurement Unit	m
Measurement Range	+9000m~ 0m

COMMUNICATION FORMAT
Hardware Interface	RS232, RS485
Baud Rate	2400, 4800, 9600, 19200, 38400

WORKING ENVIRONMENT
Waterproof Grade	IP65
Working Temperature	-20°C~ +75°C
Storage Temperature	-30°C~ +80°C
Working Humidity	<5%~100%
Electromagnetic Compatibility	IEC60945
Input Source
